Wood Nailer Alternative Brochure

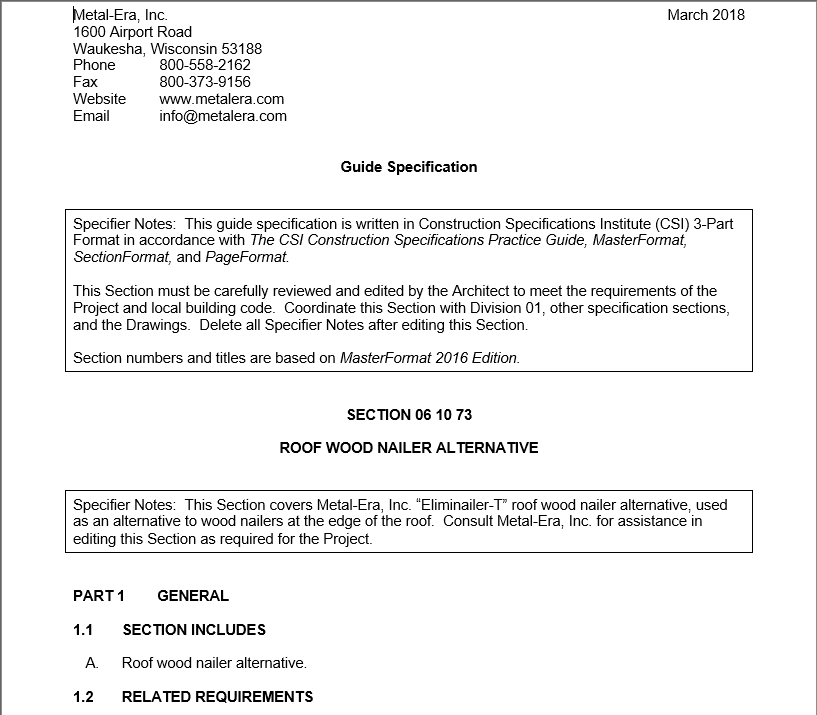

Division 6 CSI Specification Guide: Wood Nailer Alternative

Installation Video

Features and Benefits
Warranty This high performance nailer alternative comes with a Lifetime, 215 MPH Wind Warranty. It covers replacement or repair of any portion of the system that has failed due to a defect in Metal-Era supplied materials. The warranty covers the product for the lifetime of the roof on which it was originally installed.
Testing
  • Tested per ANSI/SPRI/FM 4435/ES-1 Standard to comply with the International Building Code.
  • Factory Mutual approved for wind uplift protection.
  • Miami-Dade Approved (No. 23-0912.08 12/11/28) to comply with the “High Velocity Hurricane Zone of the Florida Building Code.”
Also Included All fasteners are included and will arrive to the job site with the product.
Available Materials This product is extruded using heavy gauge aluminum.
Custom Capabilities Eliminailer-T replaces two wood nailers and allows 3" of Polyiso and 1/2" cover board or up to 3.5" of Polyiso allowing for continuous insulation to the roof edge, adding up to an R-20.5 to the edge assembly. Initial reports show up to a 35% improvement in thermal performance.
Efficient Design The patented design installs up to 60% faster than wood nailers.  The pre-punched, staggered fastening holes ensure proper installation every time, saving time and labor costs.  The product is guaranteed to improve long-term structural and thermal performance, protecting the roof and offering greater insulation. It won’t crack, warp, split or rot; it is not a food source for insects, non-combustible and won’t absorb moisture.

Product Downloads

Print Approvals

Installation Instructions
